240V Leister Hand Welder For PE Welding Machine With Temperature Adjustable

Brand Name : MY

Model Number : TOP 3400 B

Certification : CE

Place of Origin : CHINA

MOQ : one set

Price : Hidden

Payment Terms : Western Union, T/T, MoneyGram,Paypal

Supply Ability : 9879 sets / month

Delivery Time : 3-5 working days

Packaging Details : Weight : 34kg , size : 60*48*38 cm , pack : wooden box

Machine name : Original Leister heat gun Welding machine

Welding Power : 3600 W

Welding Voltage : 110V-240V

Welding area : 2-5 cm

Welding speed : 6-15 meters /min

Welding thickness : 0.22-2 mm

Welding gun : Original Leister Hot air gun from Swiss

Welding warranty : one year

Welding Frequency : 50-60 HZ

Welding Temperature : 350-400 degree ( normal )

Contact Now

240V Import Original Swiss Leister Air Gun Welding Machine With

8 Years Lifetime

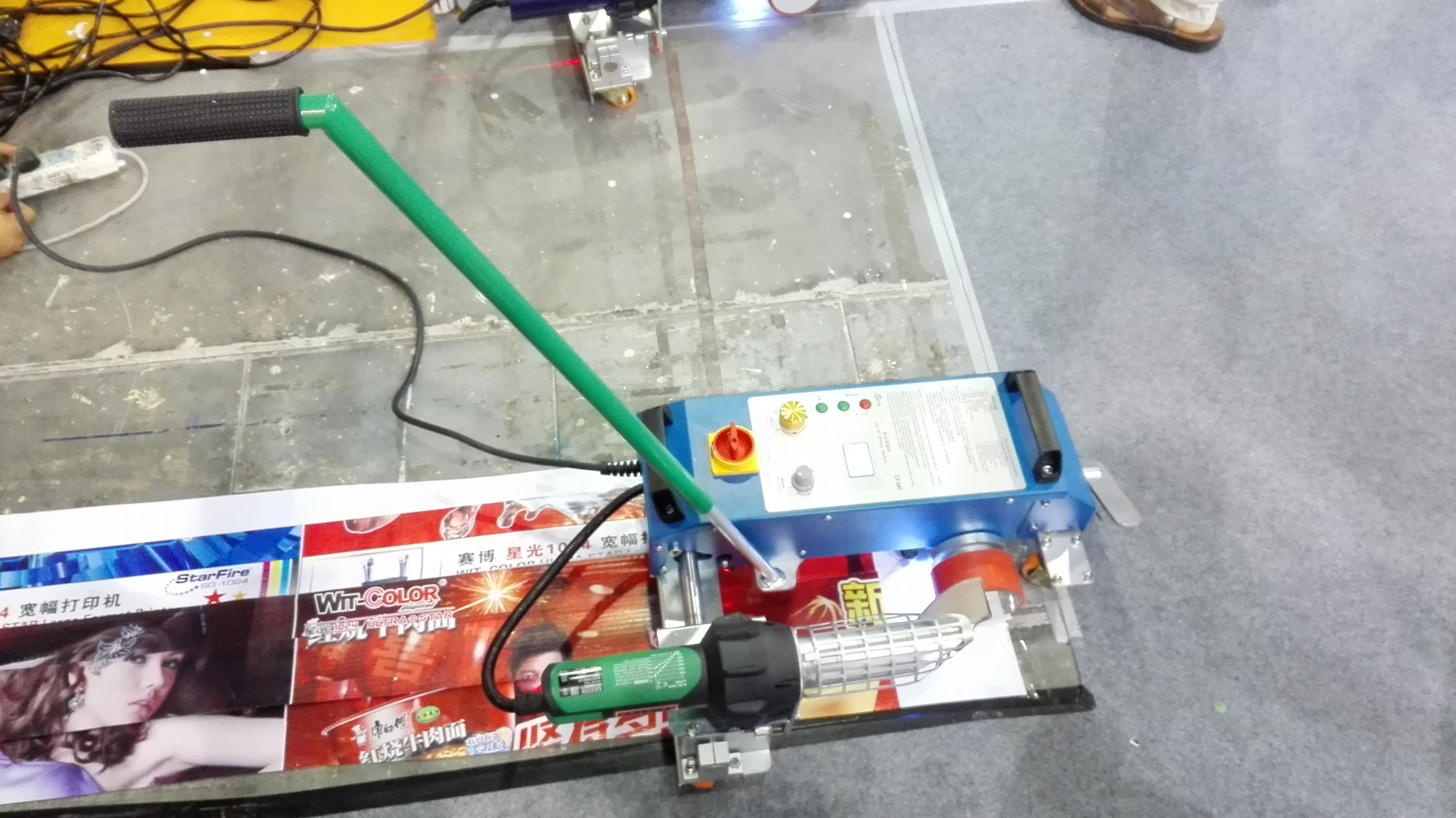

Banner Welder TOP-3400B Description :

The automatic banner welding machine is designed to welding the outdoor materials that can be hot melt.

The automatic welding machine can weld advertising inkjet fabric, inkjet cloth, light box cloth, thick PVC cloth, mesh cloth, tarpaulin and other PVC, PE, DHPE, LDPE, EVA, PP plastic materials that can be hot melted.

• It also can avoid leakage.

• It is small, light and easy to operate.

• It uses advanced PID control technology, and adjust the power to make the temperature more constant automatically, the fluctuation is within 1 degrees. This function can make the welding result stronger.

• It is equipped with temperature feedback sensor. The sensor can always monitoring the temperature of the outlet to keep a constant temperature.

Character for TOP3400B pvc flex banner hot air welding machine:

► Equipped 3400W Leister heat gun from Swiss, lifetime can reach 6-8 years

► Has landing gear, Handrail, Laser, Light, operation more convenient

► Digital display: Set &Actual temperature, walk speed can see clearly.

► Adopt digital constant temperature technology, temperature fluctuation±1 degree

► Big power, Strong wind, welding speed can reach 15m/min

► Auto-Dormancy Function, protect heating element well, let machine lifetime longer

Operation Step :

1. Make the cloth for seaming flat and put it underneath. Fix both ends by adhesive tape or something else.
2. The overlap width of the two pieces is about 3 mm, the width of the nozzle of hot seaming machine.
3. Put the machine nozzle between two overlap pieces.
The press wheel should be at left side of nozzle. The nozzle also need align with side of upper piece of cloth.
4. Switch on the motor power and then adjust speed.
5. Turn on the movement switch.
6. Press heating power key to adjust temperature.
7 Turn the bar by anticlockwise to fix the position to startup automatic movement. The machine will go along with the overlap path by itself.
8. Turn the bar by clockwise to cease the automatic work.
9. The operator should control the moving direction and make sure the nozzle connect both with upper and under piece cloth.

Banner Welder TOP-3400B Specification:

Welding Power : 3600 W

Welding Voltage : 220-240V

Welding Temperature : 350-400 degree

Welding Speed : 6 -15 meters / min

Welding Thickness : 0.22-2 mm

Welding Width : 2-5 cm

Welding Frequency : 50-60 HZ

Welding Warranty : one year

Welding heat gun : Import Original Leister Hot air gun from Swiss

FAQ :

1. Q : What's the MOQ ?

A : The MOQ is one set of Banner Welding Machine .

2. Q : What's the Function ?

A : The Function is : Welding PVC , PE , Flex , Vinyl , Banner , Plastic and other materials can be hot melt.

3. Q : Is it automatic welding ?

A : Yes , It is automatic welding , with the Infrared positioning function and long handle , good quality and more convience .

4. Q : How long will delivery the Banner Welder after payment ?

A : We will delivery the goods in 3-7 working days after payment .

5. Q : How can i pay ?

A : Our company accept : T/T , Western Union , Paypal .

Any questions or demand please send your Inquiry Details at the below , Thank you :-)
